element <program> (in programs)
Namespace:
{no namespace}
Type:
anonymous complexType
Content:
complex, 7 attributes, 22 elements
Defined:
locally in element programs in on_update_source_programs_3.23.xsd; see XML source
Includes:
declarations of 7 attributes, 22 elements

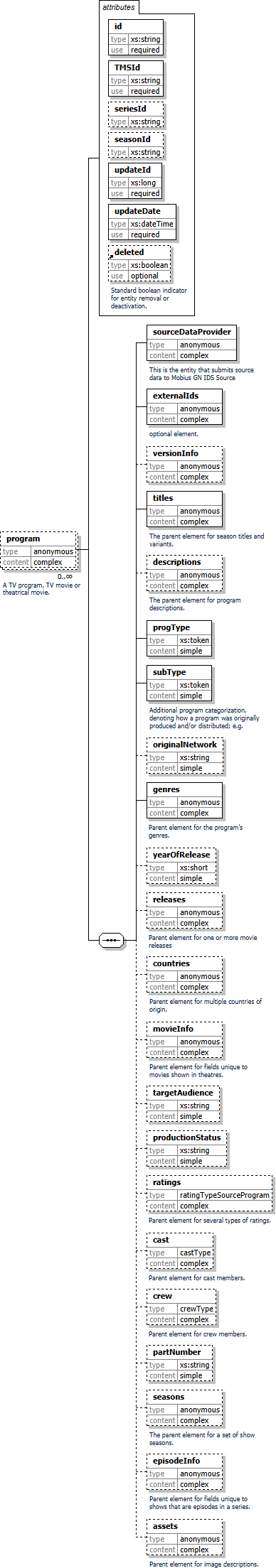

Component Diagram
XML Representation Summary
<program

id
 =
xs:string
TMSId
 =
xs:string
seriesId
 =
xs:string
seasonId
 =
xs:string
updateId
 =
xs:long
updateDate
 =
xs:dateTime
deleted
 =
xs:boolean

>

Content:
sourceDataProvider, externalIds, versionInfo?, titles, descriptions?, progType, subType, originalNetwork?, genres, yearOfRelease?, releases?, countries?, movieInfo?, targetAudience?, productionStatus?, ratings?, cast?, crew?, partNumber?, seasons?, episodeInfo?, assets?
</program>
Attributes:
Name
Type / Value
Default
Required?
Declared In
Description
id
xs:string
yes
this
TMSId
xs:string
yes
this
seriesId
xs:string
no
this
seasonId
xs:string
no
this
updateId
xs:long
yes
this
updateDate
xs:dateTime
yes
this
deleted
xs:boolean
no
this
Standard boolean indicator for entity removal or deactivation.
Content Element Model:
Component
Type / Value
Occurs
Nillable?
Declared In
Description
SEQUENCE
1..1
this
 sourceDataProvider
anonymous
1..1
no
this
This is the entity that submits source data to Mobius GN IDS Source
 externalIds
anonymous
1..1
no
this
optional element. »
 versionInfo
anonymous
0..1
no
this
 titles
anonymous
1..1
no
this
The parent element for season titles and variants.
 descriptions
anonymous
0..1
no
this
The parent element for program descriptions.
 progType
xs:token
1..1
no
this
 subType
xs:token
1..1
no
this
Additional program categorization, denoting how a program was originally produced and/or distributed; e.g. »
 originalNetwork
xs:string
0..1
no
this
 genres
anonymous
1..1
no
this
Parent element for the program's genres.
 yearOfRelease
xs:short
0..1
no
this
 releases
anonymous
0..1
no
this
Parent element for one or more movie releases
 countries
anonymous
0..1
no
this
Parent element for multiple countries of origin.
 movieInfo
anonymous
0..1
no
this
Parent element for fields unique to movies shown in theatres.
 targetAudience
xs:string
0..1
no
this
 productionStatus
xs:string
0..1
no
this
 ratings
ratingTypeSourceProgram
0..1
no
this
Parent element for several types of ratings.
 cast
castType
0..1
no
this
Parent element for cast members.
 crew
crewType
0..1
no
this
Parent element for crew members.
 partNumber
xs:string
0..1
no
this
 seasons
anonymous
0..1
no
this
The parent element for a set of show seasons.
 episodeInfo
anonymous
0..1
no
this
Parent element for fields unique to shows that are episodes in a series.
 assets
anonymous
0..1
no
this
Parent element for image descriptions.
Description
A TV program, TV movie or theatrical movie.
