element <episodeInfo> (in program in programs) | Gracenote XSD Schema Documentation

element <episodeInfo> (in program in programs)

Namespace:	{no namespace}
Type:	anonymous complexType
Content:	complex, 3 attributes, 3 elements
Defined:	locally in element program in on_update_source_programs_3.23.xsd; see XML source
Includes:	declarations of 3 attributes, 3 elements

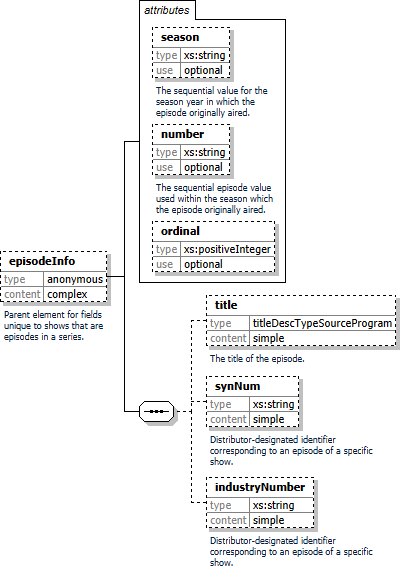

Component Diagram

XML Representation Summary

<episodeInfo

Content:

</episodeInfo>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
season	xs:string		no	this	The sequential value for the season year in which the episode originally aired.
number	xs:string		no	this	The sequential episode value used within the season which the episode originally aired.
ordinal	xs:positiveInteger		no	this

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		this
title	titleDescTypeSourceProgram : xs:string	0..1	no	this	The title of the episode. »
synNum	xs:string	0..1	no	this	Distributor-designated identifier corresponding to an episode of a specific show.
industryNumber	xs:string	0..1	no	this	Distributor-designated identifier corresponding to an episode of a specific show. »

Description

Parent element for fields unique to shows that are episodes in a series.
