element <asset> (type assetTypeSourceProgram)

Namespace:	{no namespace}
Type:	assetTypeSourceProgram
Content:	complex, 17 attributes, 10 elements
Defined:	locally at 2 locations in on_update_source_programs_3.23.xsd

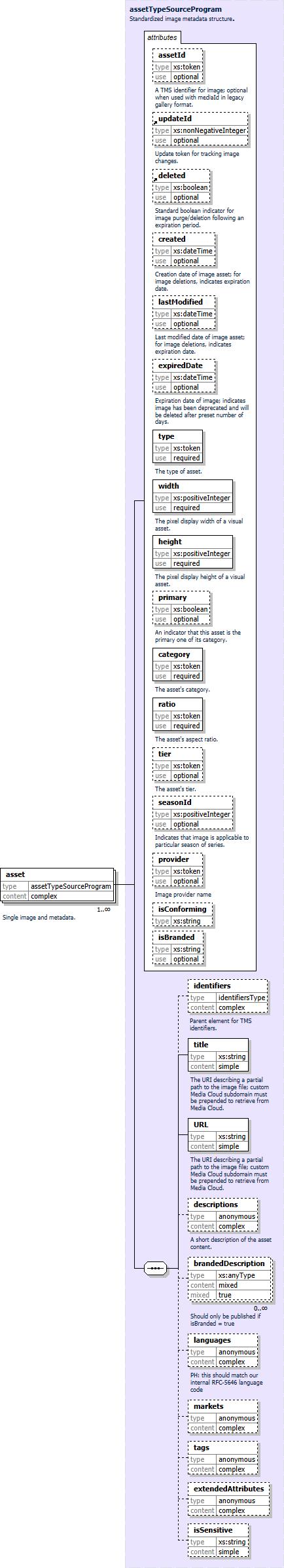

Component Diagram

XML Representation Summary

<asset

assetId	=	xs:token
updateId	=	xs:nonNegativeInteger
deleted	=	xs:boolean
created	=	xs:dateTime
lastModified	=	xs:dateTime
expiredDate	=	xs:dateTime
type	=	xs:token
width	=	xs:positiveInteger
height	=	xs:positiveInteger
primary	=	xs:boolean
category	=	xs:token
ratio	=	xs:token
tier	=	xs:token
seasonId	=	xs:positiveInteger
provider	=	xs:token
isConforming	=	xs:string
isBranded	=	xs:string

Content:

identifiers?, title, URL, descriptions?, brandedDescription*, languages?, markets?, tags?, extendedAttributes?, isSensitive?

</asset>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
assetId	xs:token		no	assetTypeSourceProgram	A TMS identifier for image; optional when used with mediaId in legacy gallery format.
updateId	xs:nonNegativeInteger		no	assetTypeSourceProgram	Update token for tracking image changes.
deleted	xs:boolean		no	assetTypeSourceProgram	Standard boolean indicator for image purge/deletion following an expiration period.
created	xs:dateTime		no	assetTypeSourceProgram	Creation date of image asset; for image deletions, indicates expiration date.
lastModified	xs:dateTime		no	assetTypeSourceProgram	Last modified date of image asset; for image deletions, indicates expiration date.
expiredDate	xs:dateTime		no	assetTypeSourceProgram	Expiration date of image; indicates image has been deprecated and will be deleted after preset number of days.
type	xs:token		yes	assetTypeSourceProgram	The type of asset. »
width	xs:positiveInteger		yes	assetTypeSourceProgram	The pixel display width of a visual asset.
height	xs:positiveInteger		yes	assetTypeSourceProgram	The pixel display height of a visual asset.
primary	xs:boolean		no	assetTypeSourceProgram	An indicator that this asset is the primary one of its category.
category	xs:token		yes	assetTypeSourceProgram	The asset's category. »
ratio	xs:token		yes	assetTypeSourceProgram	The asset's aspect ratio.
tier	xs:token		no	assetTypeSourceProgram	The asset's tier. »
seasonId	xs:positiveInteger		no	assetTypeSourceProgram	Indicates that image is applicable to particular season of series. »
provider	xs:token		no	assetTypeSourceProgram	Image provider name
isConforming	xs:string		no	assetTypeSourceProgram
isBranded	xs:string		no	assetTypeSourceProgram

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		assetTypeSourceProgram
identifiers	identifiersType	0..1	no	assetTypeSourceProgram	Parent element for TMS identifiers.
title	xs:string	1..1	no	assetTypeSourceProgram	The URI describing a partial path to the image file; custom Media Cloud subdomain must be prepended to retrieve from Media Cloud.
URL	xs:string	1..1	no	assetTypeSourceProgram	The URI describing a partial path to the image file; custom Media Cloud subdomain must be prepended to retrieve from Media Cloud.
descriptions	anonymous	0..1	no	assetTypeSourceProgram	A short description of the asset content.
brandedDescription	xs:anyType	0..∞	no	assetTypeSourceProgram	Should only be published if isBranded = true
languages	anonymous	0..1	no	assetTypeSourceProgram	PH: this should match our internal RFC-5646 language code
markets	anonymous	0..1	no	assetTypeSourceProgram
tags	anonymous	0..1	no	assetTypeSourceProgram
extendedAttributes	anonymous	0..1	no	assetTypeSourceProgram
isSensitive	xs:string	0..1	no	assetTypeSourceProgram

Descriptions (1) (by all definition locations)

Locations (2):

within assets (in season in seasons in program in programs) element [def], within assets (in program in programs) element [def]

Annotation:

Single image and metadata.

Related Components

Included in content model of elements (2):

assets (in program in programs),

assets (in season in seasons in program in programs)

Definition Locations

In anonymous complexTypes of elements (2):

assets (in program in programs) [def],

assets (in season in seasons in program in programs) [def]
