element <name> (in member in crew)

Namespace:	{no namespace}
Type:	anonymous complexType (extension of pNameType)
Content:	complex, 1 attribute, 10 elements
Defined:	locally in element member in on_update_programs_3.23.xsd; see XML source
Includes:	declaration of 1 attribute

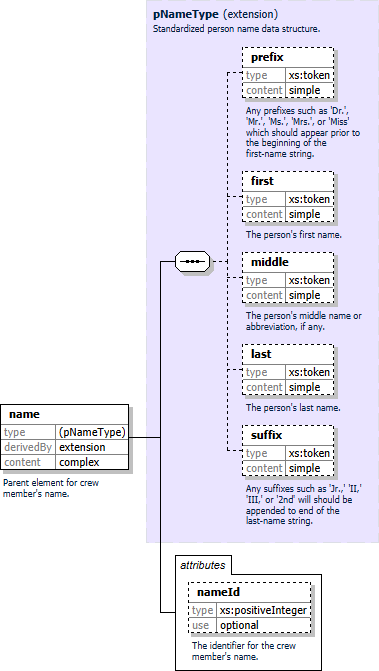

Component Diagram

XML Representation Summary

<name

xs:positiveInteger

Content:

</name>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
nameId	xs:positiveInteger		no	this	The identifier for the crew member's name.

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		pNameType
prefix	xs:token	0..1	no	pNameType	Any prefixes such as 'Dr.', 'Mr.', 'Ms.', 'Mrs.', or 'Miss' which should appear prior to the beginning of the first-name string.
first	xs:token	0..1	no	pNameType	The person's first name.
middle	xs:token	0..1	no	pNameType	The person's middle name or abbreviation, if any.
last	xs:token	0..1	no	pNameType	The person's last name.
suffix	xs:token	0..1	no	pNameType	Any suffixes such as 'Jr.,' 'II,' 'III,' or '2nd' will should be appended to end of the last-name string.

Description

Parent element for crew member's name.

Related Components

Anonymous Type Detail

Type Derivation Tree

pNameType (extension)
