element <member> (in crew)
Namespace:
{no namespace}
Type:
anonymous complexType
Content:
complex, 2 attributes, 2 elements
Defined:
locally in complexType crewType in on_update_programs_3.23.xsd; see XML source
Includes:
declarations of 2 attributes, 2 elements

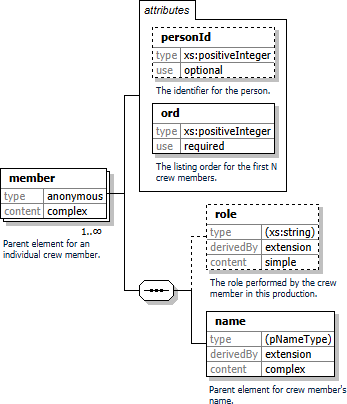

Component Diagram
XML Representation Summary
<member

personId
 =
xs:positiveInteger
ord
 =
xs:positiveInteger

>

Content:
role?, name
</member>
Attributes:
Name
Type / Value
Default
Required?
Declared In
Description
personId
xs:positiveInteger
no
this
The identifier for the person.
ord
xs:positiveInteger
yes
this
The listing order for the first N crew members.
Content Element Model:
Component
Type / Value
Occurs
Nillable?
Declared In
Description
SEQUENCE
1..1
this
 role
anonymous : xs:string
0..1
no
this
The role performed by the crew member in this production.
 name
anonymous
1..1
no
this
Parent element for crew member's name.
Description
Parent element for an individual crew member.
