element <transportId> (in transportIds in channel) | Gracenote XSD Schema Documentation

element <transportId> (in transportIds in channel)

Namespace:	{no namespace}
Type:	anonymous complexType
Content:	complex, 3 elements
Defined:	locally in element transportIds in on_update_lineups_3.23.xsd; see XML source
Includes:	declarations of 3 elements

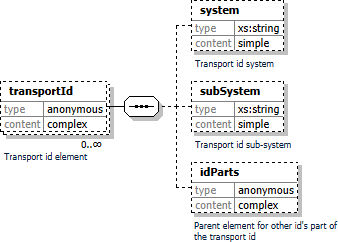

Component Diagram

XML Representation Summary

Content:

</transportId>

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		this
system	xs:string	0..1	no	this	Transport id system
subSystem	xs:string	0..1	no	this	Transport id sub-system
idParts	anonymous	0..1	no	this	Parent element for other id's part of the transport id

Description

Transport id element

Related Components

XML schema documentation generated with FlexDoc/XML 1.14 using FlexDoc/XML XSDDoc 3.0 template set. All XSD diagrams generated by FlexDoc/XML DiagramKit.
