element <channel> | Gracenote XSD Schema Documentation

element <channel>

Namespace:	{no namespace}
Type:	anonymous complexType
Content:	complex, 1 attribute, 2 elements
Defined:	locally in element channelList in on_update_lineups_3.23.xsd; see XML source
Includes:	declarations of 1 attribute, 2 elements

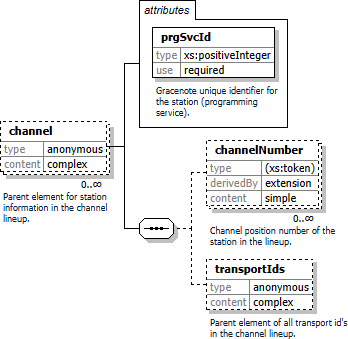

Component Diagram

XML Representation Summary

<channel

xs:positiveInteger

Content:

</channel>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
prgSvcId	xs:positiveInteger		yes	this	Gracenote unique identifier for the station (programming service).

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		this
channelNumber	anonymous : xs:token	0..∞	no	this	Channel position number of the station in the lineup.
transportIds	anonymous	0..1	no	this	Parent element of all transport id's in the channel lineup.

Description

Parent element for station information in the channel lineup.

Related Components
