element <asset> (in assets in program in programs)

Namespace:	{no namespace}
Type:	sourceProgramAssetType
Content:	complex, 9 attributes, 2 elements
Defined:	locally in element assets in on_update_sourcePrograms_3.23.xsd; see XML source

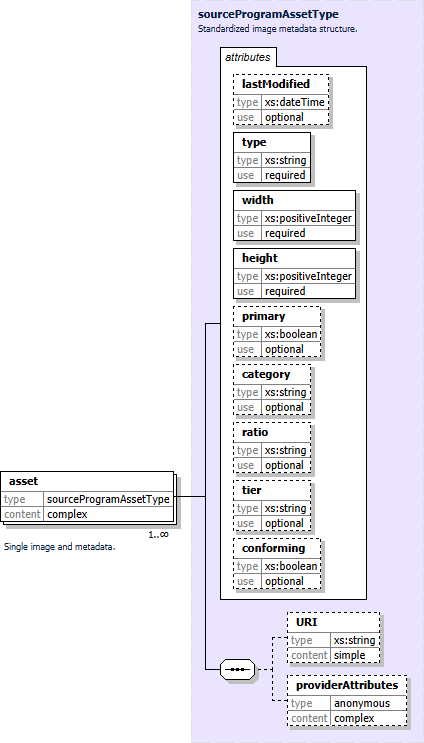

Component Diagram

XML Representation Summary

<asset

lastModified	=	xs:dateTime
type	=	xs:string
width	=	xs:positiveInteger
height	=	xs:positiveInteger
primary	=	xs:boolean
category	=	xs:string
ratio	=	xs:string
tier	=	xs:string
conforming	=	xs:boolean

>

Content:

URI?, providerAttributes?

</asset>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
lastModified	xs:dateTime		no	sourceProgramAssetType
type	xs:string		yes	sourceProgramAssetType
width	xs:positiveInteger		yes	sourceProgramAssetType
height	xs:positiveInteger		yes	sourceProgramAssetType
primary	xs:boolean		no	sourceProgramAssetType
category	xs:string		no	sourceProgramAssetType
ratio	xs:string		no	sourceProgramAssetType
tier	xs:string		no	sourceProgramAssetType
conforming	xs:boolean		no	sourceProgramAssetType

Content Element Model:

Component	Type / Value	Occurs		Nillable?	Declared In	Description
SEQUENCE		1..1			sourceProgramAssetType
URI	xs:string	0..1		no	sourceProgramAssetType
providerAttributes	anonymous	0..1		no	sourceProgramAssetType

Description

Single image and metadata.

Related Components

Included in content model of elements (1):

assets (in program in programs)
