element <event> (in schedule)

Namespace:	{no namespace}
Type:	anonymous complexType
Content:	complex, 10 attributes, 5 elements
Defined:	locally in element schedule in on_update_schedules_3.23.xsd; see XML source
Includes:	declarations of 10 attributes, 5 elements

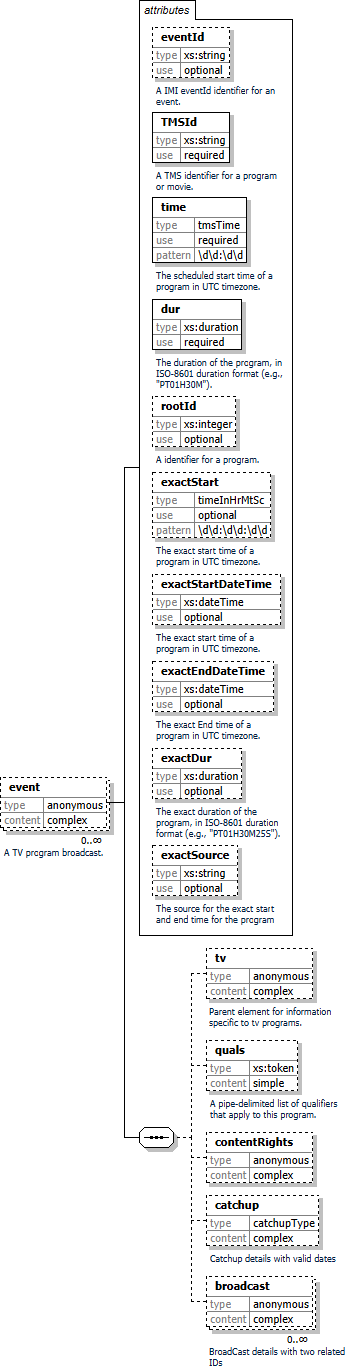

Component Diagram

XML Representation Summary

<event

Content:

</event>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
eventId	xs:string		no	this	A IMI eventId identifier for an event.
TMSId	xs:string		yes	this	A TMS identifier for a program or movie.
time	tmsTime : restriction of xs:string		yes	this	The scheduled start time of a program in UTC timezone. Specified in ISO-8601 extended format, HH24:MM (e.g., "14:30").
dur	xs:duration		yes	this	The duration of the program, in ISO-8601 duration format (e.g., "PT01H30M").
rootId	xs:integer		no	this	A identifier for a program.
exactStart	timeInHrMtSc : restriction of xs:string		no	this	The exact start time of a program in UTC timezone. Specified in ISO-8601 extended format, HH24:MM:SS (e.g., "14:30:25").
exactStartDateTime	xs:dateTime		no	this	The exact start time of a program in UTC timezone. Specified in ISO-8601 extended format (e.g., "2022-02-07T23:55:00Z").
exactEndDateTime	xs:dateTime		no	this	The exact End time of a program in UTC timezone. Specified in ISO-8601 extended format (e.g., "2022-02-07T23:55:00Z").
exactDur	xs:duration		no	this	The exact duration of the program, in ISO-8601 duration format (e.g., "PT01H30M25S").
exactSource	xs:string		no	this	The source for the exact start and end time for the program

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		this
tv	anonymous	0..1	no	this	Parent element for information specific to tv programs.
quals	xs:token	0..1	no	this	A pipe-delimited list of qualifiers that apply to this program. »
contentRights	anonymous	0..1	no	this
catchup	catchupType	0..1	no	this	Catchup details with valid dates
broadcast	anonymous	0..∞	no	this	BroadCast details with two related IDs

Description

A TV program broadcast.

Related Components
