element <relationship> (in relationships in program in programs)

Namespace:	{no namespace}
Type:	anonymous complexType
Content:	complex, 10 elements
Defined:	locally in complexType relationshipsType in on_update_programs_3.23.xsd; see XML source
Includes:	declarations of 10 elements

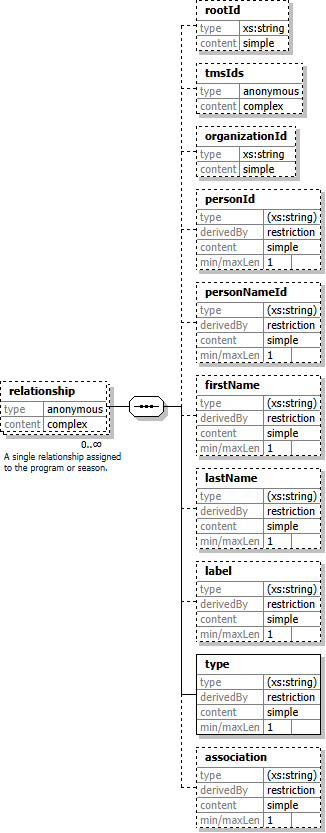

Component Diagram

XML Representation Summary

Content:

</relationship>

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		this
rootId	xs:string	0..1	no	this
tmsIds	anonymous	0..1	no	this
organizationId	xs:string	0..1	no	this
personId	anonymous : restriction of xs:string	0..1	no	this
personNameId	anonymous : restriction of xs:string	0..1	no	this
firstName	anonymous : restriction of xs:string	0..1	no	this
lastName	anonymous : restriction of xs:string	0..1	no	this
label	anonymous : restriction of xs:string	0..1	no	this
type	anonymous : restriction of xs:string	1..1	no	this
association	anonymous : restriction of xs:string	0..1	no	this

Description

A single relationship assigned to the program or season.

Related Components

Included in content model of elements (1):

relationships (in program in programs)
