element <ratings> (in program in programs) | Gracenote XSD Schema Documentation

element <ratings> (in program in programs)

Namespace:	{no namespace}
Type:	ratingType
Content:	complex, 3 elements
Defined:	locally in element program in on_update_programs_3.23.xsd; see XML source

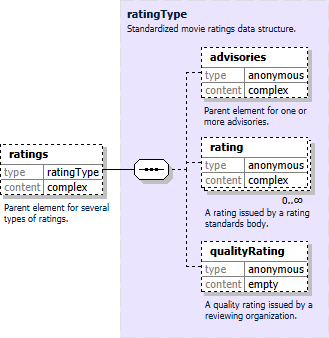

Component Diagram

XML Representation Summary

Content:

</ratings>

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		ratingType
advisories	anonymous	0..1	no	ratingType	Parent element for one or more advisories.
rating	anonymous	0..∞	no	ratingType	A rating issued by a rating standards body.
qualityRating	anonymous	0..1	no	ratingType	A quality rating issued by a reviewing organization.

Description

Parent element for several types of ratings.

Related Components
