element <member> (in cast) | Gracenote XSD Schema Documentation

element <member> (in cast)

Namespace:	{no namespace}
Type:	anonymous complexType
Content:	complex, 2 attributes, 4 elements
Defined:	locally in complexType castType in on_update_programs_3.23.xsd; see XML source
Includes:	declarations of 2 attributes, 4 elements

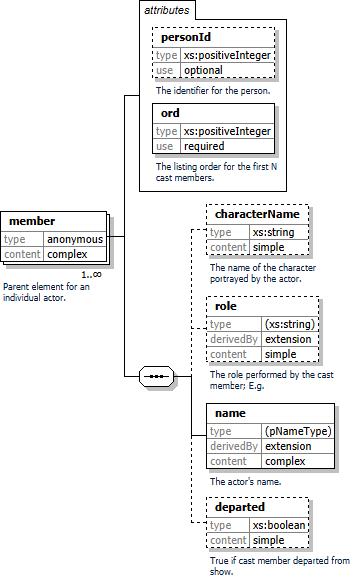

Component Diagram

XML Representation Summary

<member

personId	=	xs:positiveInteger
ord	=	xs:positiveInteger

Content:

</member>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
personId	xs:positiveInteger		no	this	The identifier for the person.
ord	xs:positiveInteger		yes	this	The listing order for the first N cast members.

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		this
characterName	xs:string	0..1	no	this	The name of the character portrayed by the actor.
role	anonymous : xs:string	0..1	no	this	The role performed by the cast member; E.g. »
name	anonymous	1..1	no	this	The actor's name.
departed	xs:boolean	0..1	no	this	True if cast member departed from show.

Description

Parent element for an individual actor.

Related Components
