element <on> | Gracenote XSD Schema Documentation

element <on>

Namespace:	{no namespace}
Type:	anonymous complexType
Content:	complex, 1 attribute, 2 elements
Defined:	globally in on_update_programmappings_3.23.xsd; see XML source
Includes:	declarations of 1 attribute, 2 elements
Referenced:	never

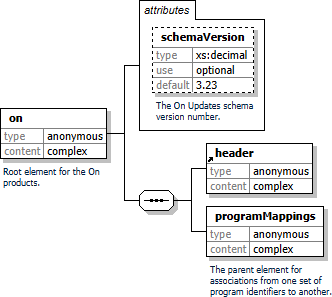

Component Diagram

XML Representation Summary

<on

xs:decimal : "3.23"

Content:

</on>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
schemaVersion	xs:decimal	"3.23"	no	this	The On Updates schema version number.

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		this
header	anonymous	1..1	no	this
programMappings	anonymous	1..1	no	this	The parent element for associations from one set of program identifiers to another.

Description

Root element for the On products.
