element <videoDescriptor> (in videoDescriptors in programAnnotation)

Namespace:	{no namespace}
Type:	anonymous complexType
Content:	complex, 1 attribute, 2 elements
Defined:	locally in element videoDescriptors in on_update_programAnnotations_3.23.xsd; see XML source
Includes:	declarations of 1 attribute, 2 elements

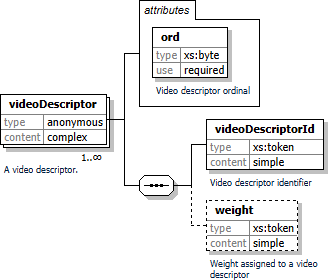

Component Diagram

XML Representation Summary

<videoDescriptor

xs:byte

Content:

</videoDescriptor>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
ord	xs:byte		yes	this	Video descriptor ordinal

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		this
videoDescriptorId	xs:token	1..1	no	this	Video descriptor identifier
weight	xs:token	0..1	no	this	Weight assigned to a video descriptor

Description

A video descriptor.

Related Components

Included in content model of elements (1):

videoDescriptors (in programAnnotation)
