element <award> | Gracenote XSD Schema Documentation

element <award>

Namespace:	{no namespace}
Type:	awardType
Content:	complex, 2 attributes, 4 elements
Defined:	locally at 2 locations in on_update_celebrities_3.23.xsd on_update_programs_3.23.xsd

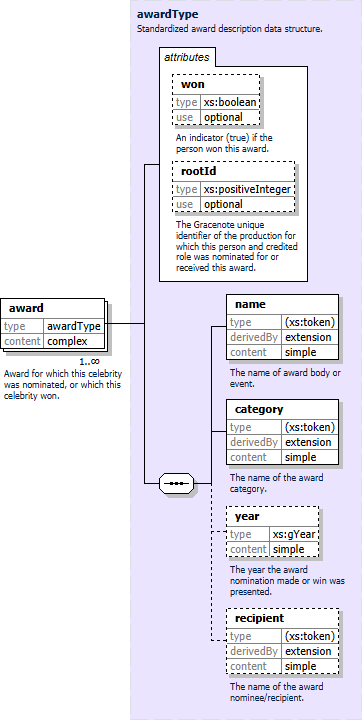

Component Diagram

XML Representation Summary

<award

won	=	xs:boolean
rootId	=	xs:positiveInteger

Content:

</award>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
won	xs:boolean		no	awardType	An indicator (true) if the person won this award. »
rootId	xs:positiveInteger		no	awardType	The Gracenote unique identifier of the production for which this person and credited role was nominated for or received this award.

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		awardType
name	anonymous : xs:token	1..1	no	awardType	The name of award body or event.
category	anonymous : xs:token	1..1	no	awardType	The name of the award category.
year	xs:gYear	0..1	no	awardType	The year the award nomination made or win was presented.
recipient	anonymous : xs:token	0..1	no	awardType	The name of the award nominee/recipient.

Descriptions (2) (by all definition locations)

Location:

within awards (in person) element [def]

Annotation:

Award for which this celebrity was nominated, or which this celebrity won.

Location:

within awards (in program in programs) element [def]

Annotation:

Parent element for individual awards.

Related Components

Included in content model of elements (2):

awards (in person),

awards (in program in programs)

Definition Locations

In anonymous complexTypes of elements (2):

awards (in person) [def],

awards (in program in programs) [def]
