element <asset> (type assetType) | Gracenote XSD Schema Documentation

element <asset> (type assetType)

Namespace:	{no namespace}
Type:	assetType
Content:	complex, 15 attributes, 3 elements
Defined:	locally at 11 locations in on_update_celebrities_3.23.xsd on_update_images_3.23.xsd on_update_organizations_3.23.xsd on_update_programs_3.23.xsd on_update_sources_3.23.xsd on_update_sports_events_3.23.xsd on_update_teams_3.23.xsd on_update_universities_3.23.xsd

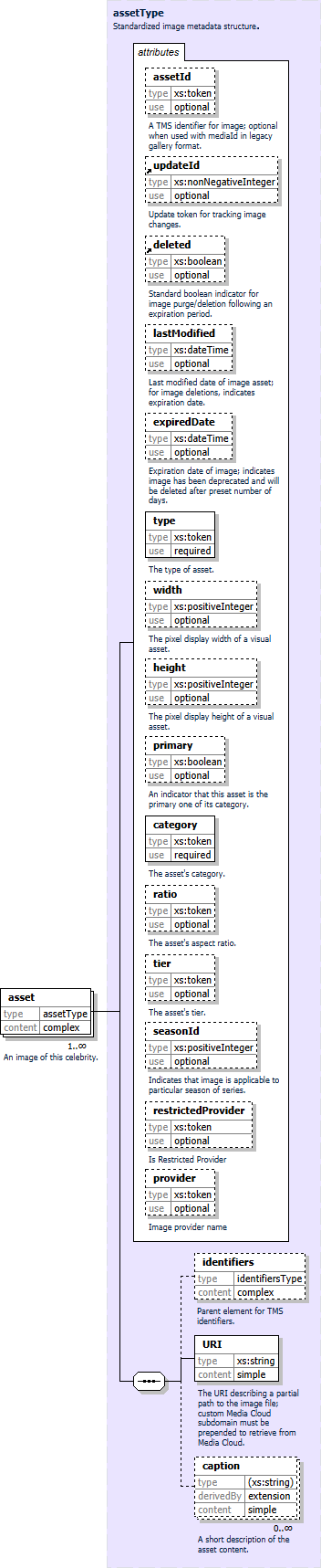

Component Diagram

XML Representation Summary

<asset

assetId	=	xs:token
updateId	=	xs:nonNegativeInteger
deleted	=	xs:boolean
lastModified	=	xs:dateTime
expiredDate	=	xs:dateTime
type	=	xs:token
width	=	xs:positiveInteger
height	=	xs:positiveInteger
primary	=	xs:boolean
category	=	xs:token
ratio	=	xs:token
tier	=	xs:token
seasonId	=	xs:positiveInteger
restrictedProvider	=	xs:token
provider	=	xs:token

Content:

identifiers?, URI, caption*

</asset>

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
assetId	xs:token		no	assetType	A TMS identifier for image; optional when used with mediaId in legacy gallery format.
updateId	xs:nonNegativeInteger		no	assetType	Update token for tracking image changes.
deleted	xs:boolean		no	assetType	Standard boolean indicator for image purge/deletion following an expiration period.
lastModified	xs:dateTime		no	assetType	Last modified date of image asset; for image deletions, indicates expiration date.
expiredDate	xs:dateTime		no	assetType	Expiration date of image; indicates image has been deprecated and will be deleted after preset number of days.
type	xs:token		yes	assetType	The type of asset. »
width	xs:positiveInteger		no	assetType	The pixel display width of a visual asset.
height	xs:positiveInteger		no	assetType	The pixel display height of a visual asset.
primary	xs:boolean		no	assetType	An indicator that this asset is the primary one of its category.
category	xs:token		yes	assetType	The asset's category. »
ratio	xs:token		no	assetType	The asset's aspect ratio.
tier	xs:token		no	assetType	The asset's tier. »
seasonId	xs:positiveInteger		no	assetType	Indicates that image is applicable to particular season of series. »
restrictedProvider	xs:token		no	assetType	Is Restricted Provider
provider	xs:token		no	assetType	Image provider name

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1		assetType
identifiers	identifiersType	0..1	no	assetType	Parent element for TMS identifiers.
URI	xs:string	1..1	no	assetType	The URI describing a partial path to the image file; custom Media Cloud subdomain must be prepended to retrieve from Media Cloud.
caption	anonymous : xs:string	0..∞	no	assetType	A short description of the asset content.

Descriptions (3) (by all definition locations)

Locations (4):

within assets (in on) element [def], within assets (in program in programs) element [def], within assets (in season in seasons in program in programs) element [def], within assets (in teamBrand) element [def]

Annotation:

Single image and metadata.

Location:

within assets (in person) element [def]

Annotation:

An image of this celebrity.

Location:

within assets (in university) element [def]

Annotation:

The university logo.

Related Components

Included in content model of elements (11):

assets (in conference in conferences in leagueInfo),

assets (in division in divisions in leagueInfo),

assets (in on),

assets (in person),

assets (in prgSvc),

assets (in program in programs),

assets (in season in seasons in program in programs),

assets (in sportsEvent in sportsEvents in on),

assets (in teamBrand),

assets (in university),

assets (type assetsType)

Definition Locations

Within global complexTypes (1):

assetsType [def]

In anonymous complexTypes of elements (10):

assets (in conference in conferences in leagueInfo) [def],

assets (in division in divisions in leagueInfo) [def],

assets (in on) [def],

assets (in person) [def],

assets (in prgSvc) [def],

assets (in program in programs) [def],

assets (in season in seasons in program in programs) [def],

assets (in sportsEvent in sportsEvents in on) [def],

assets (in teamBrand) [def],

assets (in university) [def]
