element <medium> (type media_type_context) | Gracenote XSD Schema Documentation

element <medium> (type media_type_context)

Namespace:	{no namespace}
Type:	media_type_context
Content:	complex, 28 elements
Defined:	locally at 6 locations in gvd_common_types_3.0.5.xsd gvd_common_types_3.0.5.xsd

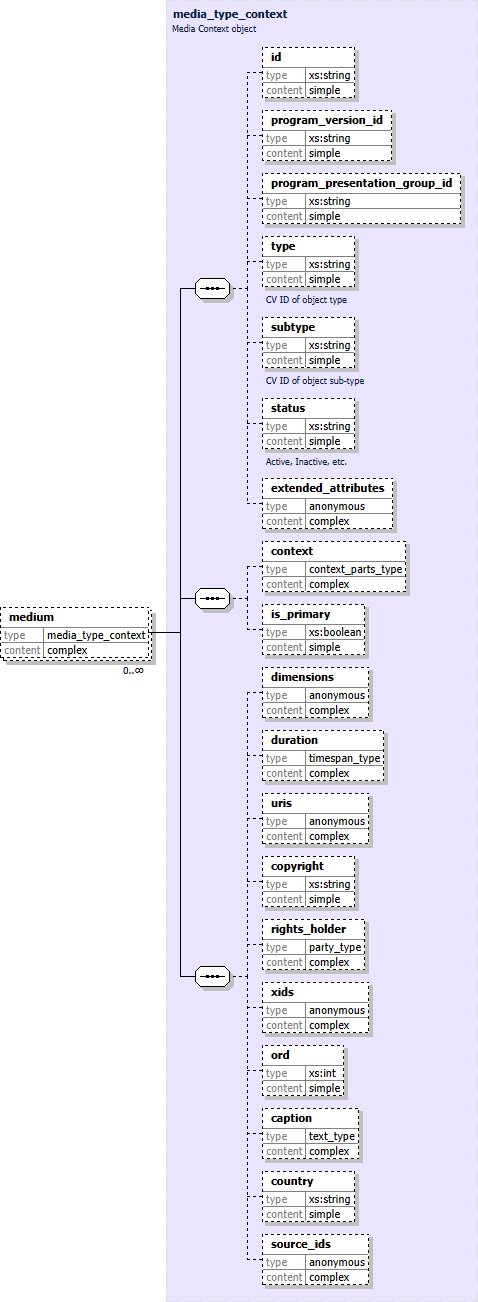

Component Diagram

XML Representation Summary

Content:

</medium>

Content Element Model:

Component	Type / Value	Occurs	Nillable?	Declared In	Description
SEQUENCE		1..1			Implicitly formed by extending context_type
id	xs:string	0..1	no	object_type
program_version_id	xs:string	0..1	no	object_type
program_presentation_group_id	xs:string	0..1	no	object_type
type	xs:string	0..1	no	object_type	CV ID of object type
subtype	xs:string	0..1	no	object_type	CV ID of object sub-type
status	xs:string	0..1	no	object_type	Active, Inactive, etc.
extended_attributes	anonymous	0..1	no	object_type
context	context_parts_type	0..1	no	context_type
is_primary	xs:boolean	0..1	no	context_type
dimensions	anonymous	0..1	no	media_type_context
duration	timespan_type	0..1	no	media_type_context
uris	anonymous	0..1	no	media_type_context
copyright	xs:string	0..1	no	media_type_context
rights_holder	party_type	0..1	no	media_type_context
xids	anonymous	0..1	no	media_type_context
ord	xs:int	0..1	no	media_type_context
caption	text_type	0..1	no	media_type_context
country	xs:string	0..1	no	media_type_context
source_ids	anonymous	0..1	no	media_type_context

Related Components

Included in content model of elements (6):

media (defined in complexType party_type),

media (defined in complexType program_type),

media (defined in complexType source_type),

media (defined in complexType source_type)

Definition Locations

In anonymous complexTypes of elements (6):

media (defined in complexType party_type) [def],

media (defined in complexType program_type) [def],

media (defined in complexType source_type) [def],

media (defined in complexType source_type) [def]
